K-TANK

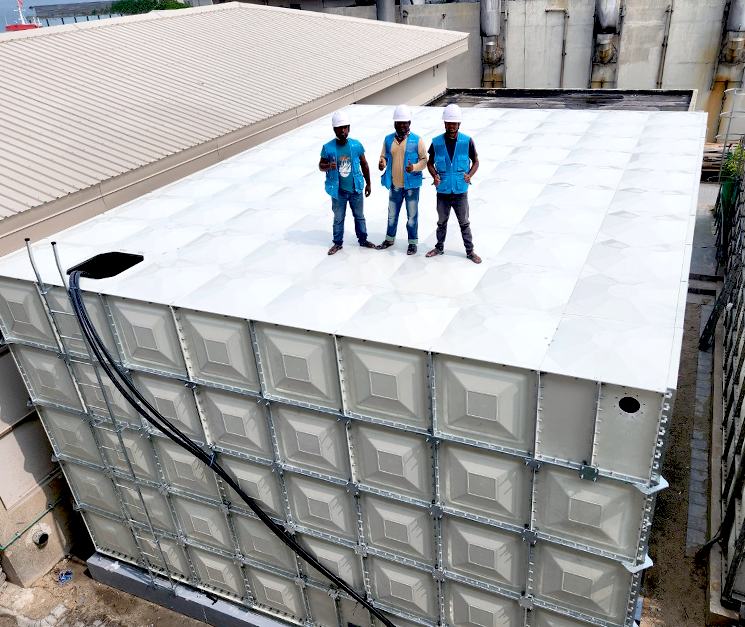

SMC(GRP) PANEL TANK
Internally Reinforced System
- It is possible that various capacity’s design and flexible space should be used by GRP panels standardized
- Excellent watertightness, hygienic conditions and non-leakage applied internally reinforced stay(Stainless)
Externally Reinforced System
We provide a perfect hygiene and convenience for cleaning with an External Reinforcement System that has no possibility of containing rusty water.

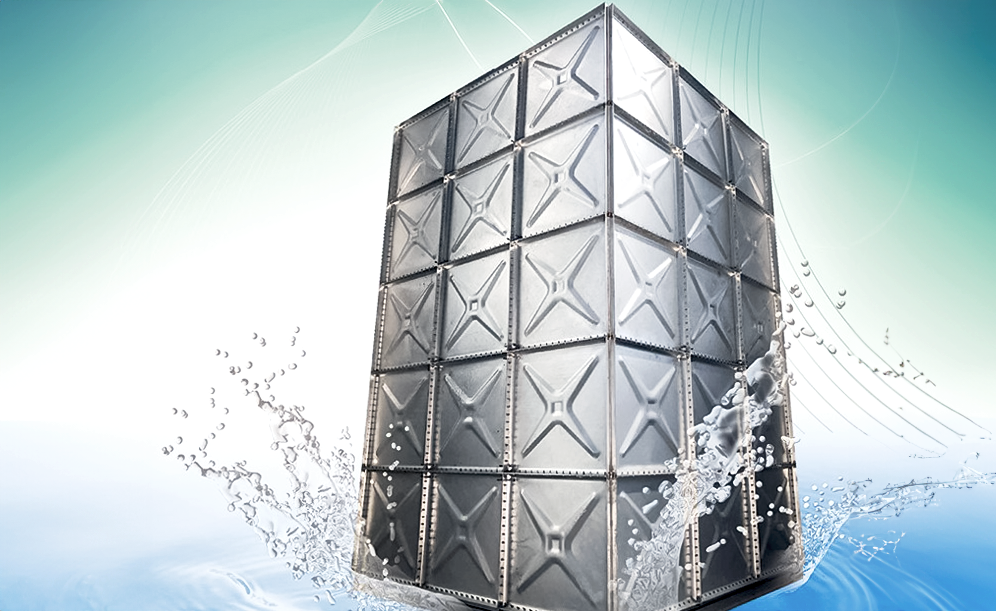

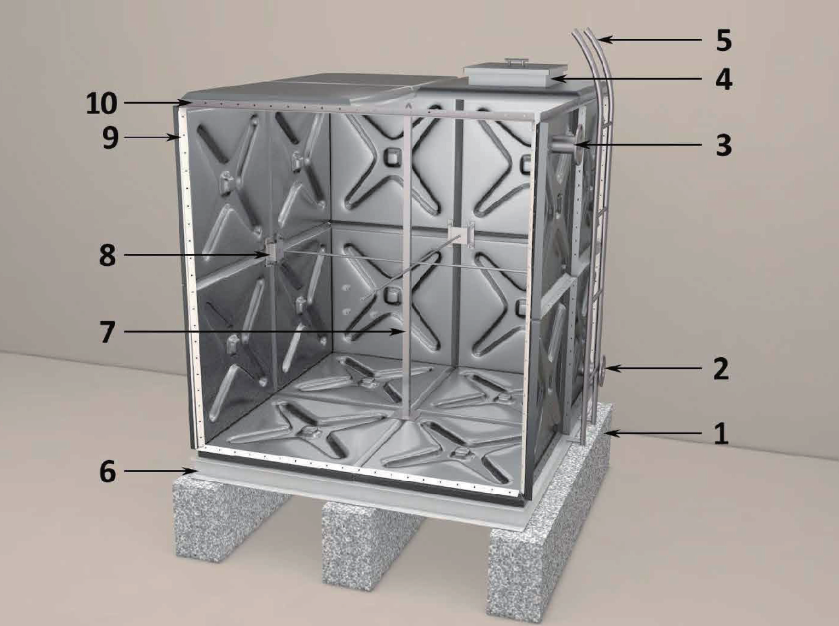

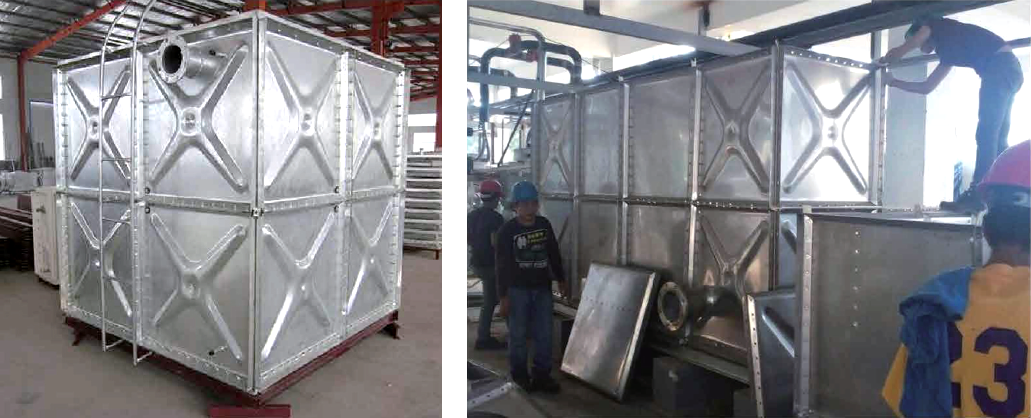

STEEL PANEL TANK(STS, HDG, GSC)
- 01.Concrete Pad
- 02.Outlet Flange
- 03.Inlet flange
- 04.Manhole
- 05.External ladder
- 06.C-Channel
- 07.Vertical support
- 08.Tie rod plate
- 09.Sealing rubber
- 10.Top angle bar
ADVANTAGES
- ANTI-CORROSION The thickness of Zinc layer is over 70㎛ equally, have superior anti-corrosion capability.
- RELIABLE QUALITY - Our panel comply the standard of Singapore PSB, SGS, QSB(China) etc. - The life-span can be over 25years.
- DIMENSION FLEXIBILITY The size of panel can be 1.22X1.22m, 1x0.5m and 0.5x0.5m, which can assemble kinds of volume from 0.125㎥ to 5000㎥
- CONVENIENT INSTALLATION Factory precast panel is easy to assemble and disassemble, the construction drawing, installation video, and a series of complete installation plan will be provided.
- DURABLE Using the 1000T hydraulic press integrated molding, no welding seam at panel corners.
- BURY UNDERGROUND All the K-steel tank can be bury underground, the thickness of inner structure and panels are thicker than normal tank.
ACCESSORIES
-

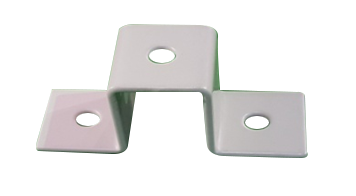

Tie rods Bracket 1760
-

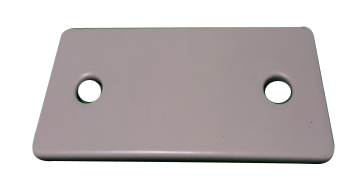

Cross plate(2 holes) 1610
-

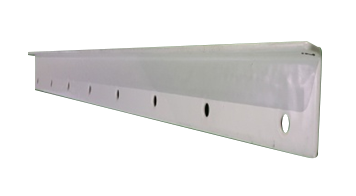

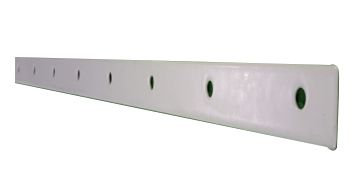

Flat Bar 1205/955/880/450
-
Tie rods Bracket 17160
-

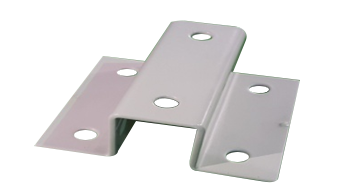

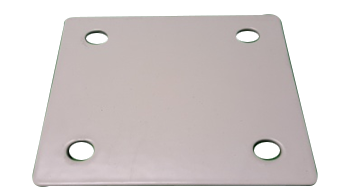

Cross plate(4 holes) 1616
-
Flange Bar 1205/955/880/450

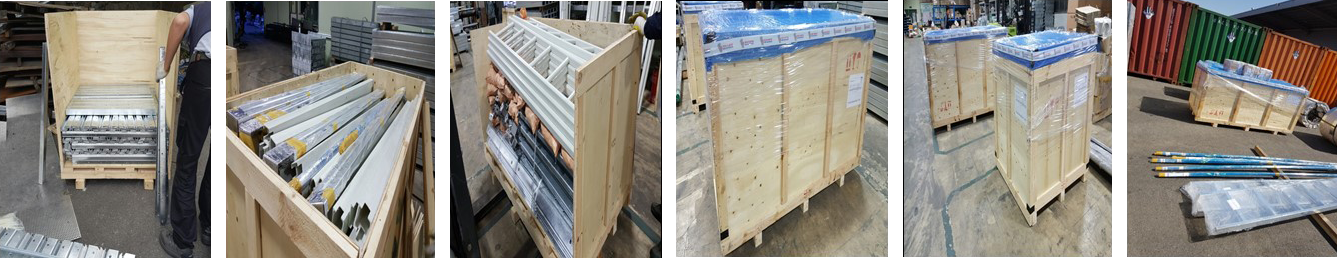

Packing(Export)_Accessories

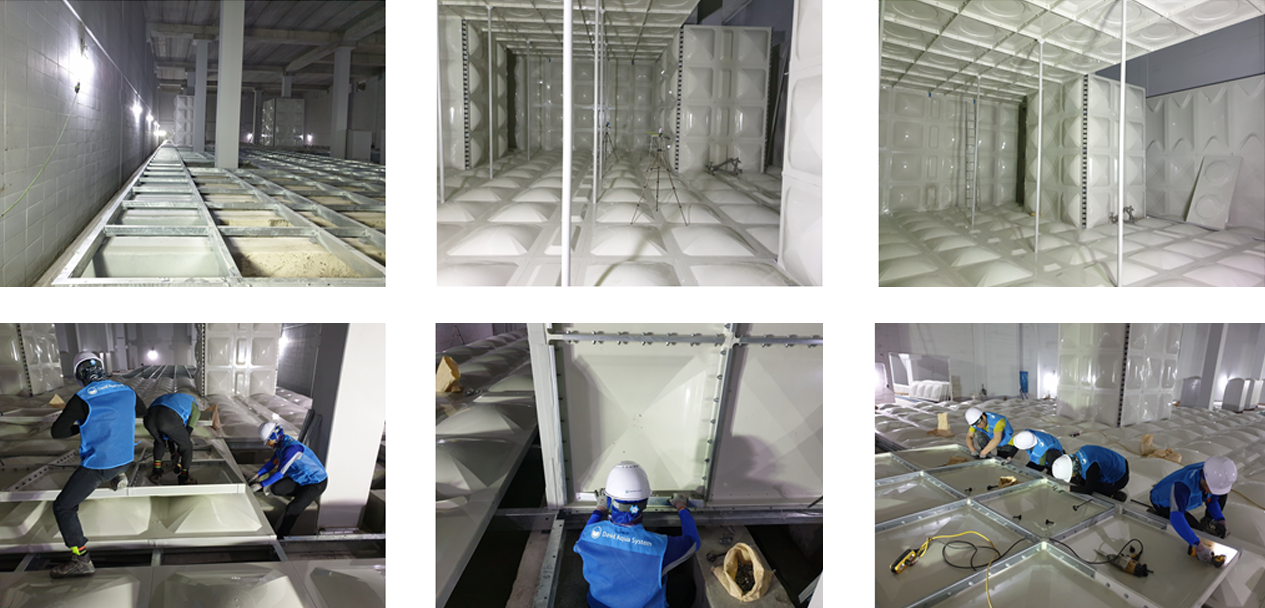

Project(Installation)
